WEET WCN 105℃ 1000 Hours Bi-Polarized SMD Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WCN 105℃ 1000 Hours Bi-Polarized SMD Aluminum Electrolytic Capacitors
Bi-Polarized
Operating with wide temperature range -55 ~ +105°C
Load life of 1000 Hours
Comply with the RoHS directive

Detailed Specifications


Operating Temperature: -55℃~+105℃
Rated Voltage: 6.3V - 50V.DC
Capacitance Range: 0.1uF - 100uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Various Dimensions Size mm: 4x5.4, 5x5.4, 6.3x5.4, 6.3x7.7, 8x10.5, 10x10.5, 10x13.5, 12.5x13.5, 12.5x16, 16x16.5, 16x21.5, 18x16.5, 18x18.5

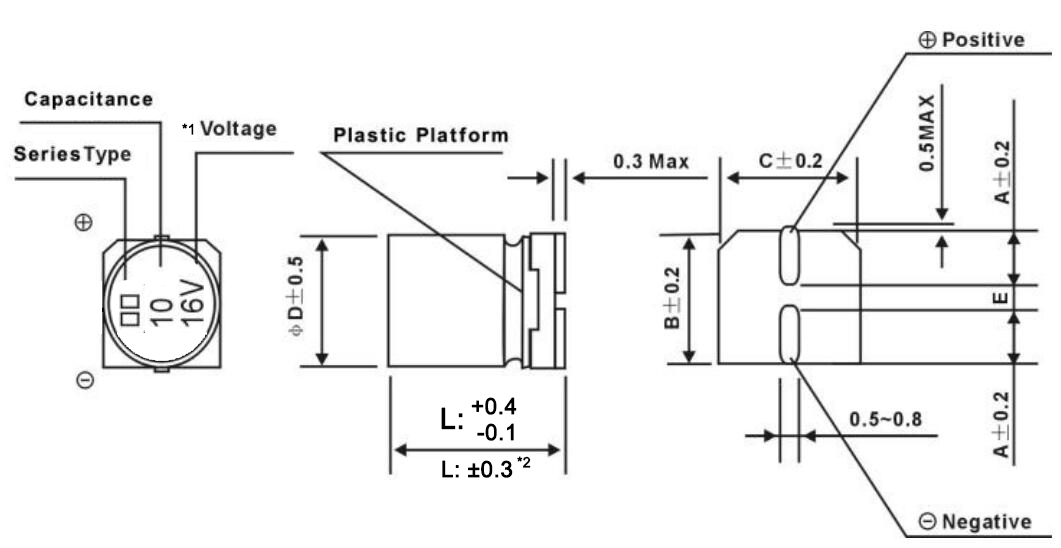

Product Drawing

Main Applications

The products are mainly used in LED display screen, outdoor advertising full-color display screen, PC power supply, audio power amplifier, adapter, charger, security, vehicle DVD, network communication equipment, control board card, set-top box, LED energy-saving lamp rectifier and other fields.
