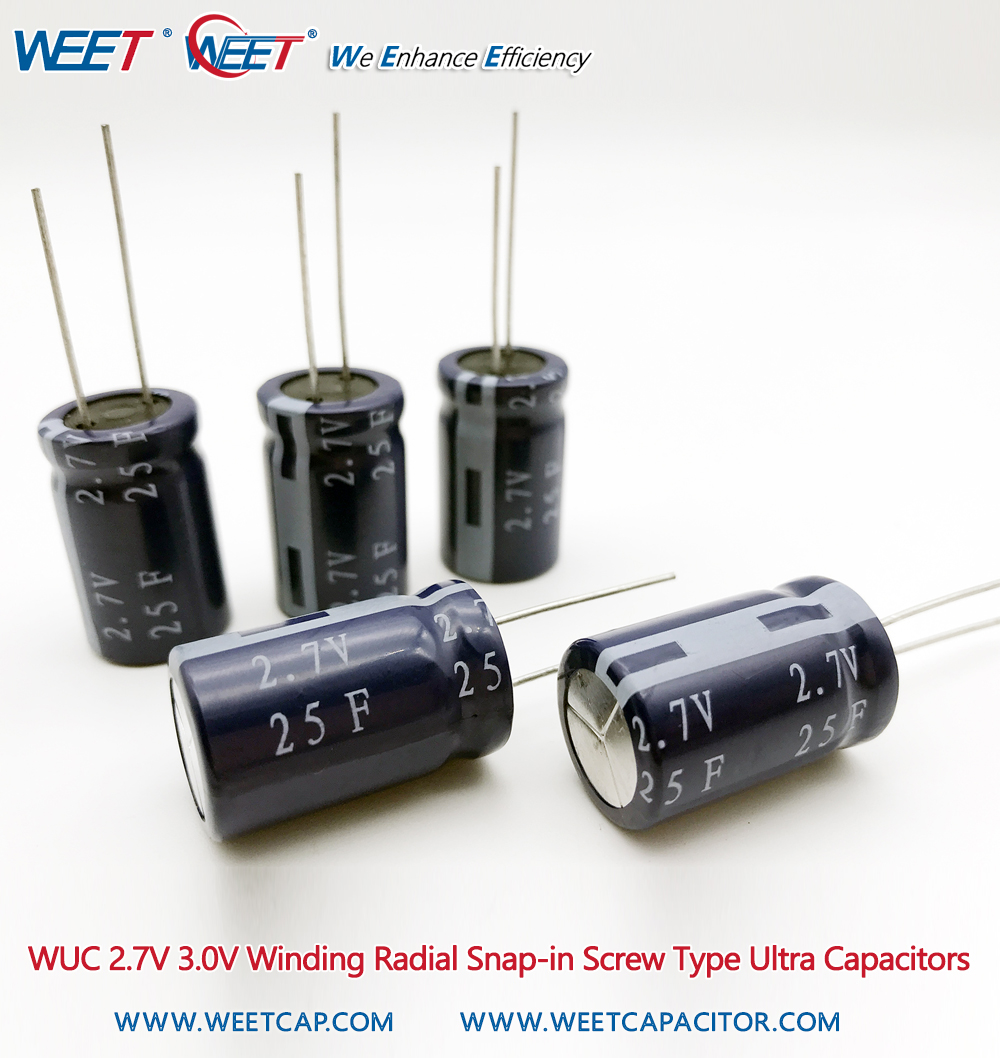

WEET WUC Radial Type Super Capacitors 2.7V 25F Pitch 7.5mm Bulk Packing RoHS Common Items Part Number

Date: 2023-03-10

In addition to batteries, the power supply that can store electric energy also has super capacitors. The supercapacitor is an advanced environment-friendly energy storage device, which is between the traditional capacitor and the energy storage battery. It uses the double-layer structure composed of activated carbon porous electrode and electrolyte to obtain super-large capacity and energy storage. It not only has the discharge power of traditional capacitor, but also has the capacity of chemical battery to reserve charge.

1. Features: cylindrical shape structure, large capacity, low internal resistance, in line with ROHS lead-free requirements; Fast charging/discharging. Provide instantaneous large current output

2. Application: backup power supply for small current power supply, such as flashlight, flashlight, car black box, electric tool, tax control machine, tax control fuel dispenser, vacuum switch, intelligent meter, remote meter reading system, instruments and meters, digital camera, handheld computer, electronic door lock, cordless power, clock chip, data transmission system, etc.

3. Specified values and dimensions of standard products

WEET PN Code Capacity ESR mΩ Product size（mm）
F DC ACkHz Diameter Height Pin distance
Rated voltage: 2.7V, Capacitance Tolerance:%~+30%, Raidal Type, Bulk Packing, RoHS
WUC2R7104F00500120020000RB 0.1 1400 700 5 12 2
WUC2R7104F00500100020000RB 0.1 1400 700 5 10 2
WUC2R7154F00500100020000RB 0.15 500 250 5 10 2
WUC2R7204F00500100020000RB 0.2 1200 600 5 10 2
WUC2R7204F00500120020000RB 0.2 400 200 5 12 2
WUC2R7254F00500120020000RB 0.25 4000 200 5 12 2
WUC2R7354F00500120020000RB 0.35 500 250 5 12 2
WUC2R7504F00630100025000RB 0.5 700 350 6.3 10 2.5
WUC2R7504F00630125025000RB 0.5 700 350 6.3 12.5 2.5
WUC2R7704F00800130035000RB 0.7 600 300 8 13 3.5
WUC2R7704F00400180016000RB 0.7 2600 1300 4 18 1.6
WUC2R7105F00800130035000RB 1 600 300 8 13 3.5
WUC2R7105F00630100025000RB 1 1100 550 6.3 10 2.5
WUC2R7105F00630125025000RB 1 1300 650 6.3 12.5 2.5
WUC2R7155F00800130035000RB 1.5 700 350 8 13 3.5
WUC2R7155F01000130050000RB 1.5 600 300 10 13 5
WUC2R7155F00630140025000RB 1.5 700 350 6.3 14 2.5
WUC2R7155F00800160035000RB 1.5 500 250 8 16 3.5
WUC2R7205F00630220025000RB 2 480 240 6.3 22 2.5
WUC2R7205F00630170025000RB 2 500 250 6.3 17 2.5
WUC2R7205F00800160035000RB 2 400 200 8 16 3.5
WUC2R7205F00800200035000RB 2 260 130 8 20 3.5
WUC2R7205F01000200050000RB 2 240 120 10 20 5
WUC2R7225F01000200050000RB 2.2 240 120 10 20 5
WUC2R7305F00630220025000RB 3 500 250 6.3 22 2.5
WUC2R7335F00630220025000RB 3.3 500 250 6.3 22 2.5
WUC2R7335F00800200035000RB 3.3 240 120 8 20 3.5
WUC2R7335F01000200050000RB 3.3 140 70 10 20 5
WUC2R7405F01000200050000RB 4 140 70 10 20 5
WUC2R7405F01250210050000RB 4 200 100 12.5 21 5
WUC2R7405F00800200035000RB 4 200 100 8 20 3.5
WUC2R7475F01250210050000RB 4.7 120 60 12.5 21 5
WUC2R7505F01000200050000RB 5 180 90 10 20 5
WUC2R7505F00800240035000RB 5 180 90 8 24 3.5
WUC2R7505F00800200035000RB 5 180 90 8 20 3.5
WUC2R7605F01000250050000RB 6 120 60 10 25 5
WUC2R7605F00800240035000RB 6 300 150 8 24 3.5
WUC2R7605F01000200050000RB 6 150 75 10 20 5
WUC2R7705F01000200050000RB 7 160 80 10 20 5
WUC2R7705F00800300035000RB 7 160 80 8 30 3.5
WUC2R7805F01250210050000RB 8 100 50 12.5 21 5
WUC2R7106F01250250050000RB 10 80 40 12.5 25 5
WUC2R7106F01250340050000RB 10 80 40 12.5 34 5
WUC2R7106F01000250050000RB 10 100 50 10 25 5
WUC2R7106F01000300050000RB 10 110 55 10 30 5
WUC2R7106F01250210050000RB 10 110 55 12.5 21 5
WUC2R7126F01250340050000RB 12 80 40 12.5 34 5
WUC2R7126F01250210050000RB 12 80 40 12.5 21 5
WUC2R7156F01600260075000RB 15 60 30 16 26 7.5
WUC2R7156F01250250050000RB 15 70 35 12.5 25 5
WUC2R7156F01250340050000RB 15 76 38 12.5 34 5
WUC2R7156F01000300050000RB 15 80 40 10 30 5
WUC2R7166F01600200075000RB 16 76 38 16 20 7.5
WUC2R7186F01250250050000RB 18 60 30 12.5 25 5
WUC2R7206F01600340075000RB 20 46 23 16 34 7.5
WUC2R7206F01600260075000RB 20 50 25 16 26 7.5
WUC2R7206F01250250050000RB 20 50 25 12.5 25 5
WUC2R7206F01250340050000RB 20 50 25 12.5 34 5
WUC2R7256F01600340075000RB 25 40 20 16 34 7.5
WUC2R7256F01600260075000RB 25 50 25 16 26 7.5
WUC2R7256F01600260075000RB 25 50 25 16 26 7.5
WUC2R7256F01250340050000RB 25 60 30 12.5 34 5
WUC2R7306F01600340075000RB 30 40 20 16 34 7.5
WUC2R7306F01250340050000RB 30 44 22 12.5 34 5
WUC2R7306F01800260075000RB 30 44 22 18 26 7.5
WUC2R7306F01600320075000RB 30 44 22 16 32 7.5
WUC2R7356F01600260075000RB 35 40 20 16 26 7.5
WUC2R7406F01600340075000RB 40 40 20 16 34 7.5
WUC2R7406F01800340075000RB 40 40 20 18 34 7.5
WUC2R7406F01800410075000RB 40 40 20 18 41 7.5
WUC2R7406F01800410075000RB 40 40 20 18 41 7.5
WUC2R7506F01800410075000RB 50 40 20 18 41 7.5
WUC2R7506F01800340075000RB 50 40 20 18 34 7.5
WUC2R7506F01800340075000RB 50 40 20 18 34 7.5
WUC2R7606F01800410075000RB 60 40 20 18 41 7.5
WUC2R7606F01800410075000RB 60 40 20 18 41 7.5
WUC2R7906F02200460100000RB 90 30 15 22 46 10
WUC2R7107F02200420100000RB 100 30 15 22 42 10
WUC2R7107F02200460100000RB 100 30 15 22 46 10
WUC2R7107F02540400100000RB 100 30 15 25.4 40 10
WUC2R7127F02540540100000RB 120 30 15 25.4 54 10
WUC2R7127F02200460100000RB 120 30 15 22 46 10
WUC2R7127F02540400100000RB 120 30 15 25.4 40 10
WUC2R7157F02540540100000RB 150 30 15 25.4 54 10
WUC2R7157F02540400100000RB 150 30 15 25.4 40 10
WUC2R7187F02540540100000RB 180 20 10 25.4 54 10
WUC2R7187F03000400100000RB 180 20 10 30 40 10
WUC2R7207F03500610100000RB 200 20 10 35 61 10
WUC2R7207F02540540100000RB 200 20 10 25.4 54 10
WUC2R7207F03000500100000RB 200 20 10 30 50 10
WUC2R7227F03000500100000RB 220 20 10 30 50 10
WUC2R7227F03500610100000RB 220 20 10 35 61 10
WUC2R7247F03000500100000RB 240 20 10 30 50 10
WUC2R7267F03000500100000RB 260 20 10 30 50 10
WUC2R7267F03500610100000RB 260 20 10 35 61 10
WUC2R7307F03500540100000RB 300 20 10 35 54 10
WUC2R7307F03500610100000RB 300 20 10 35 61 10
WUC2R7367F03500610100000RB 360 7 3.5 35 61 10
WUC2R7407F03500610100000RB 400 20 10 35 61 10
WUC2R7477F03500610100000RB 470 10 5 35 61 10
WUC2R7507F03500610100000RB 500 20 10 35 61 10
WUC2R7557F03500700100000RB 550 20 10 35 70 10
WUC2R7607F03500700100000RB 600 20 10 35 70 10
