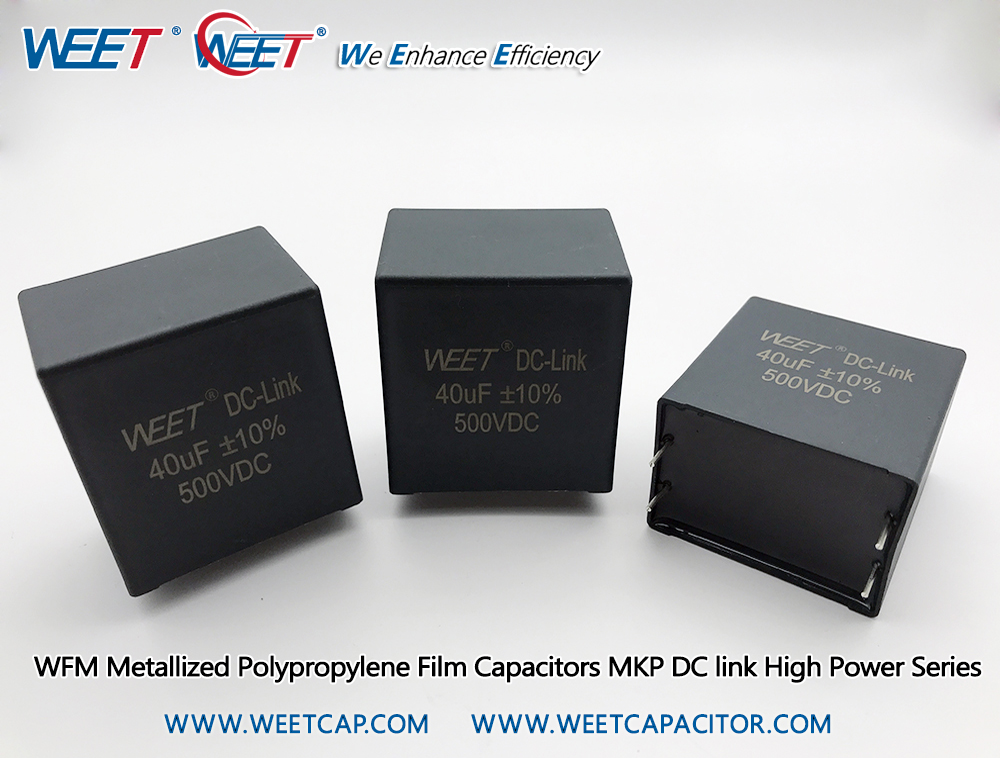

WEET WFM Metallized Polypropylene Film Capacitors MKP DC link High Power Series

PDF Download

Features

WEET WFM Metallized Polypropylene Film Capacitors MKP DC link High Power Series
High ripple current, high dv/dt withstand capability.Excellent electric property.
Self–healing properties, Low ESL and ESR,Plastic case, epoxy resin sealing（UL 94V-0.）
DC-Link and coupling/filtering for Inverter,Industrial and high-end power supplies and Solar inverters.

Detailed Specifications

Reference Standard GB/T 17702 IEC61071
Climatic Category 40/85/56
Maximum Operating Temperature (Case) 105℃
Operating Temperature Range -40℃~+85℃
Rated Voltage 500VDC ~ 1200VDC
Capacitance Range 0.68μF ~140μF
Capacitance Tolerance ±5%(J), ±10%(K)
Withstand Voltage Terminal to Terminal: (at 20°C ±5°C)
1.5 × VR applied for 10sec.
Dissipation Factor tgδ≤20*10-4 (25℃±5℃，1KHz)
Insulation Resistance Terminal to Terminal: (at 20°C ±5°C), Voltage charge time: 1 minute.
Voltage: 100VDC，≥10000S

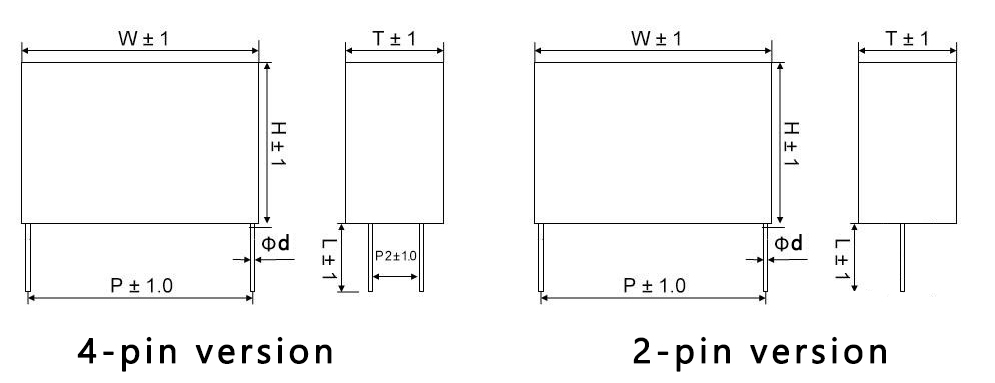

Product Drawing

Main Applications

Ø DC-Link and coupling/filtering for Inverter,Industrial and high-end power supplies and Solar inverters.

Cross Reference

All the information on this page are for reference only. Please consult with WEET Sales Engineers for more details, thank you.

Competitor Brand Competitor Part Number Competitor Description WEET Part Number WEET Description
EPCOS / TDK B32776P6226K000 DC-LINK 22UF/630VDC ±10% P=37.5 4PINS 42*28*42.5 Radial ROHS WFM1U226K375000BR WFM DC-LINK 22uF 600VDC ±10% 42x20x40mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32776Z8306K000 DC-LINK 30UF/800VDC ±10% P=37.5 4PINS 42*30*45 Radial ROHS WFM2K306K375000BR WFM DC-LINK 30uF 800VDC ±10% 42x30x45mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32776Z0206K000 DC-LINK 20UF/1KVDC ±10% P=37.5 4PINS 42*30*45 Radial ROHS WFM3A206K375000BR WFM DC-LINK 20uF 1000VDC ±10% 42x30x45mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32774X4505K000 DC-LINK 5UF/500VDC ±10% P=27.5 2PINS 31.5*11*21 Radial ROHS WFM2H505K275000BR WFM DC-LINK 5uF 500VDC ±10% 32x22x13mm P:27.5mm 2pins Radial RoHS
EPCOS / TDK B32774X8126K000 DC-LINK 12UF/800VDC ±10% P=27.5 31.5*22*36.5 Radial ROHS WFM2K126K275000BR WFM DC-LINK 12uF 800VDC ±10% 32x22x37mm P:27.5mm 2pins Radial RoHS
EPCOS / TDK B32776Z5506K000 DC-LINK 50UF/600VDC ±10% P=37.5 4PINS 42*33*48 Radial ROHS WFM1U506K375000BR WFM DC-LINK 50uF 600VDC ±10% 42x35x50mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32778Z8506K000 DC-LINK 50UF/800VDC ±10% P=52.5 4PINS 57.5*30*45 Radial ROHS WFM2K506K525000BR WFM DC-LINK 50uF 800VDC ±10% 57x35x50mm P:52.5mm 4pins Radial RoHS
EPCOS / TDK B32774X1505K000 DC-LINK 5UF/1200VDC ±10% P=37.5 2PINS 31.5*22*36.5 Radial ROHS WFM3A505K375000BR WFM DC-LINK 5uF 1000VDC ±10% 41x16x30mm P:37.5mm 2pins Radial RoHS
EPCOS / TDK B32774X1155K000 DC-LINK 1.5UF/1200VDC ±10% P=27.5 2PINS 31.5*12.5*21.5 Radial ROHS WFM3A105K275000BR WFM DC-LINK 1uF 1000VDC ±10% 32x9x18mm P:27.5mm 2pins Radial RoHS
EPCOS / TDK B32774X1155K000 DC-LINK 1.5UF/1200VDC ±10% P=27.5 2PINS 31.5*12.5*21.5 Radial ROHS WFM3A205K275000BR WFM DC-LINK 2uF 1000VDC ±10% 32x13x22mm P:27.5mm 2pins Radial RoHS
EPCOS / TDK B32774X0205K000 DC-LINK 2UF/1000VDC ±10% P=27.5 2PINS 31.5*12.5*21.5 Radial ROHS WFM3A205K275000BR WFM DC-LINK 2uF 1000VDC ±10% 32x13x22mm P:27.5mm 2pins Radial RoHS
EPCOS / TDK B32778Z0406K000 DC-LINK 40UF/1000VDC ±10% P=52.5 4PINS 57.5*35*50 Radial ROHS WFM3A406K525000BR WFM DC-LINK 40uF 1000VDC ±10% 57x35x50mm P:52.5mm 4pins Radial RoHS
KEMET C4AQCEW6130A3BJ DC-LINK 130UF/650VDC ±5% P=52.5 4PINS 57.5*45*65 Radial ROHS WFM1U137K525000BR WFM DC-LINK 130uF 600VDC ±10% 57x45x65mm P:52.5mm 4pins Radial RoHS
EPCOS / TDK B32778Z8606K000 DC-LINK 60UF/800VDC ±10% P=52.5 4PINS 57.5*35*50 Radial ROHS WFM2K606K525000BR WFM DC-LINK 60uF 800VDC ±10% 57x35x50mm P:52.5mm 4pins Radial RoHS
WIMA DCP4I061009HD4KSSD DC-LINK 100UF/600VDC ±10% P=52.5 4PINS 57*55*45 Radial Rohs WFM1U107K525000BR WFM DC-LINK 100uF 600VDC ±10% 57x45x55mm P:52.5mm 4pins Radial RoHS
KEMET C4AQCEW6110A3AJ DC-LINK 110UF/650VDC ±5% 57.5*56*45 4PINS P=52.5 Radial ROHS WFM1U117K525000BR WFM DC-LINK 110uF 600VDC ±10% 57x45x55mm P:52.5mm 4pins Radial RoHS
KEMET C4AQ1BW5150B3FJ DC-LINK 15UF/800VDC ±5% 42*40*20 P=37.5 4PINS Radial ROHS WFM2K156K375000BR WFM DC-LINK 15uF 800VDC ±10% 42x20x40mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32776P126K000 DC-LINK 12UF/700VDC ±10% 42*20*39.5 P=37.5 4PINS Radial ROHS WFM1X126K275000BR WFM DC-LINK 12uF 900VDC ±10% 41x22x37mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32778P7306K000 DC-LINK 30UF/700VDC ±10% 57.5*45*30 P=52.5 4PINS Radial ROHS WFM2K306K375000BR WFM DC-LINK 30uF 800VDC ±10% 57x25x45mm P:52.5mm 4pins Radial RoHS
KEMET C4AEHBW5300A3JJ DC-LINK 30UF/600VDC ±5% 42.5*37*28 P=37.5 4PINS Radial ROHS WFM1U306K375000BR WFM DC-LINK 30uF 600VDC ±10% 42x24x44mm P:37.5mm 4pins Radial RoHS
WIMA DCP4G056007GD4KSSD DC-LINK 60UF/400VDC ±10% 41.5*39.5*20 P=37.5 4PINS Radial ROHS WFM2H606K375000BR WFM DC-LINK 60uF 500VDC ±10% 42x30x45mm P:37.5mm 4pins Radial RoHS
KEMET C4AQLBW6130A3NK DC-LINK 130UF/500VDC ±10% 57.5*50*35 P=52.5 4PINS Radial ROHS WFM1U137K525000BR WFM DC-LINK 130uF 600VDC ±10% 57x45x65mm P:52.5mm 4pins Radial RoHS
KEMET C4AQIBU4500A1YJ DC-LINK 5UF/800VDC ±5% 31.5*28*14 P=27.5 2PINS Radial ROHS WFM2K505J275000BR WFM DC-LINK 5uF 800VDC ±5% 32x15x24.5mm P:27.5mm 2pins Radial RoHS
KEMET C4AQBW5400A3NJ DC-LINK 40UF/1100VDC ±5% 57.5*50*35 P=52.5 4PINS Radial ROHS WFM3A406K525000BR WFM DC-LINK 40uF 1000VDC ±10% 57x35x50mm P:52.5mm 4pins Radial RoHS
KEMET C4AQLBW6100A3MK DC-LINK 100UF/500VDC ±10% 57.5*45*30 P=52.5 4PINS Radial ROHS WFM2H107K525000BR WFM DC-LINK 100uF 500VDC ±10% 57x35x50mm P:52.5mm 4pins Radial RoHS
KEMET C4AQQBW5200A3LJ DC-LINK 20UF/1100VDC ±5% 42*45*30 P=37.5 4PINS Radial ROHS WFM3A206K375000BR WFM DC-LINK 20uF 1000VDC ±10% 42x30x45mm P:37.5mm 4pins Radial RoHS
KEMET C4AQLBW5400A3FK DC-LINK 40UF/500VDC ±10% 42*40*20 P=37.5 4PINS Radial ROHS WFM2H406K375000BR WFM DC-LINK 40uF 500VDC ±10% 42x27.5x37.5mm P:37.5mm 4pins Radial RoHS
KEMET C4AQCBU5100A11J DC-LINK 10UF/650VDC ±5% 31.5*29*19 P=27.5 2PINS Radial ROHS WFM1U106K275000BR WFM DC-LINK 10uF 600VDC ±10% 32x16x30mm P:27.5mm 2pins Radial RoHS
KEMET C4AEQBU433A11J DC-LINK 3.3UF/1100VDC ±5% 31.5*29*19 P=27.5 2PINS Radial ROHS WFM3A305K275000BR WFM DC-LINK 3uF 1000VDC ±10% 32x15x24.5mm P:27.5mm 2pins Radial RoHS
KEMET C4AEQBU433A11J DC-LINK 3.3UF/1100VDC ±5% 31.5*29*19 P=27.5 2PINS Radial ROHS WFM3A405K275000BR WFM DC-LINK 4uF 1000VDC ±10% 32x16x30mm P:27.5mm 2pins Radial RoHS
KEMET C4ATFBW5150A3JJ DC-LINK 15UF/400VDC ±5% 42.5*37*28 P=37.5 4PINS Radial ROHS WFM2K156K375000BR WFM DC-LINK 15uF 800VDC ±10% 42x20x40mm P:37.5mm 4pins Radial RoHS
EPCOS / TDK B32678G4406K000 DC-LINK 40UF/400VDC ±10% 57.5*50*35 P=52.5 4PINS Radial ROHS WFM1U406K525000BR WFM DC-LINK 40uF 600VDC ±10% 57x25x45mm P:52.5mm 4pins Radial RoHS
KEMET C4AQLBU5100A1XK DC-LINK 10UF/500VDC ±10% 31.5*25*13 P=27.5 2PINS Radial ROHS WFM2H106K275000BR WFM DC-LINK 10uF 500VDC ±10% 32x15x24.5mm P:27.5mm 4pins Radial RoHS
KEMET C4AQQBU4500A11J DC-LINK 5UF/1100VDC ±5% 31.5*29*19 P=27.5 2PINS Radial ROHS WFM3A505K275000BR WFM DC-LINK 5uF 1000VDC ±10% 32x18x33mm P:27.5mm 2pins Radial RoHS
KEMET C4AQLBU5150A11K DC-LINK 15UF/500VDC ±10% 31.5*29*19 P=27.5 2PINS Radial ROHS WFM1U156K525000BR WFM DC-LINK 15uF 600VDC ±10% 32x18x33mm P:27.5mm 2pins Radial RoHS
KEMET C4AF7BU4330A12K DC-LINK 3.3UF/700VDC ±10% 31.5*37*22 P=27.5 2PINS Radial ROHS WFM2K335K275000BR WFM DC-LINK 3.3uF 800VDC ±10% 32x16x30mm P:27.5mm 2pins Radial RoHS
KEMET C4AF7BW4470A3FK DC-LINK 4.7UF/700VDC ±10% 42*40*20 P=37.5 4PINS Radial ROHS WFM1X475K375000BR WFM DC-LINK 4.7uF 900VDC ±10% 41x16x30mm P:37.5mm 2pins Radial RoHS
KEMET C4AF7EW5220A3AK DC-LINK 22UF/700VDC ±10% 57.5*56*45 P=52.5 4PINS Radial ROHS WFM2K256K525000BR WFM DC-LINK 25uF 800VDC ±10% 57x25x45mm P:52.5mm 4pins Radial RoHS
KEMET C4AF7EW5270A3AK DC-LINK 27UF/700VDC ±10% 57.5*45*56 P=52.5 4PINS Radial ROHS WFM2K306K525000BR WFM DC-LINK 30uF 800VDC ±10% 57x25x45mm P:52.5mm 4pins Radial RoHS
KEMET C4AF1EW5550A3AK DC-LINK 55UF/500VDC ±10% 57.5*56*45 P=52.5 4PINS Radial ROHS WFM1U556K525000BR WFM DC-LINK 55uF 600VDC ±10% 57x29.5x43.5mm P:52.5mm 4pins Radial RoHS
KEMET C4AF7BW5150A3NK DC-LINK 15UF/700VDC ±10% 57.5*50*35 P=52.5 4PINS Radial ROHS WFM1X156K525000BR WFM DC-LINK 15uF 900VDC ±10% 57x25x45mm P:52.5mm 4pins Radial RoHS
EPCOS / TDK B32756G4905K000 DC-LINK 9UF/800VDC ±10% 42*48*33 P=37.5 4PINS Radial ROHS WFM2K905K275000BR WFM DC-LINK 9uF 800VDC ±10% 41x16x30mm P:37.5mm 2pins Radial RoHS
EPCOS / TDK B32758G4156K000 DC-LINK 15UF/800VDC ±10% 57.5*57.5*38 P=52.5 4PINS Radial ROHS WFM1X156K525000BR WFM DC-LINK 15uF 900VDC ±10% 57x25x45mm P:52.5mm 4pins Radial RoHS
