WEET WTP 7286 10 Turns Precision Wirewound Potentiometer

PDF Download

Features

WEET WTP 7286 10 Turns Precision Wirewound Potentiometer
Rated Power: 2W
10 Turns Precision Wirewound Potentiometer
Precision Adjustable, Reliable Performance, Small Size, High Precision


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Electrical Characteristics
Standard Resistance Range 100Ω-100KΩ
Resistance Tolerance ±5%
Linearity ±0.5%
Effective Electrical Stroke ≥3600°-10°
Terminal resistance ≤0.2%R or
Rotating Noise ≤3%R or
Insulation Resistance RI≥1GΩ
Withstanding Voltage 101.3kPa 710V8.5kPa 470V

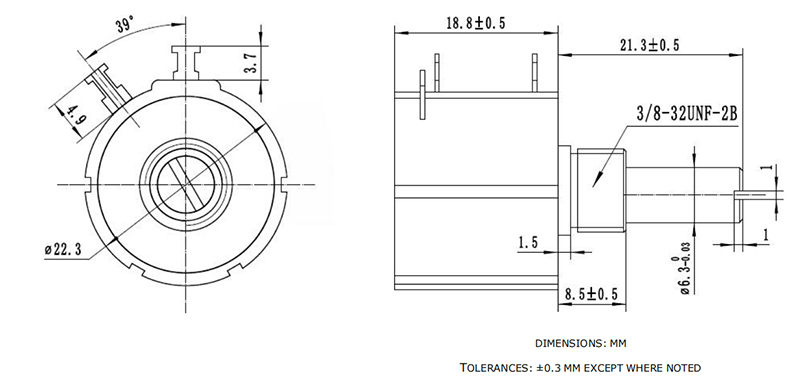

Product Drawing

WEET-WTP-7286-Drawing

Main Applications

With its excellent performance of 2W high power,+0.25% high linearity, 10 turn precision adjustment,

and a wide operating temperature range from -55 ° C to+125 ° C, the WTP-7286 series is widely used in scenarios that require extremely high stability and maneuverability
