WEET WGD-HP 2000H at 105C Snap in Aluminum Electrolytic Capacitors 2 Pins and 4 Pins

PDF Download

Features

WEET WGD-HP 2000H at 105C Snap in Aluminum Electrolytic Capacitors 2 Pins and 4 Pins
SNAP-IN TERMINAL TYPE,
WIDE TEMPERRATURE RANGE SERIES
Low,medium and high voltage ,wide temperature range 105℃,Use in big screen color-TV ,

frequency conversion air conditioner audio circuits,ets.

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

No

Item

Performance

1

Operating Temperature Range

-40℃ to +105℃

-25℃ to +105℃

2

Rated Working Voltage Range

10~100V.DC

160~450V.DC

3

Capacitance Tolerance

330-68000µF

33-2200µF

4

Capacitance Tolerance

±20%(at+200C,120HZ)

5

Leakage Current

I≤0.03CV(µA)+3mA(whichever is greater) after five minutes

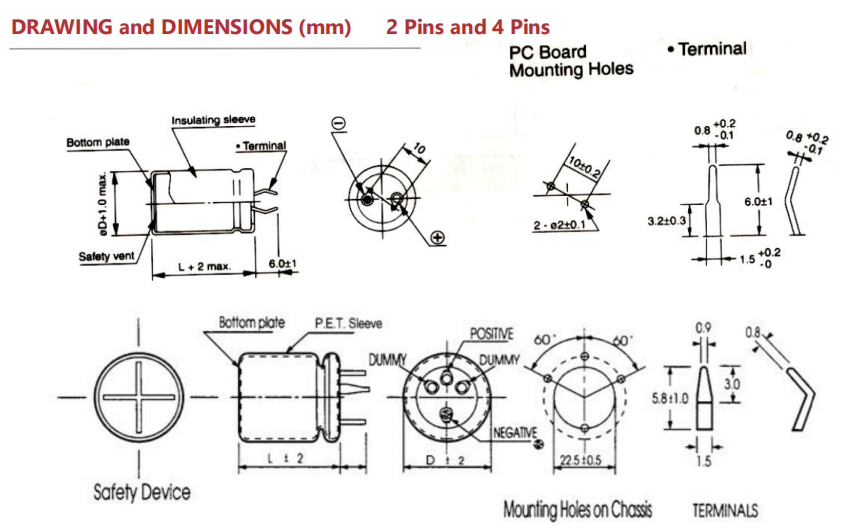

Product Drawing
