WEET KNP KNS Series Wire Wound Resistor

Wire wound resistors are made by winding the resistance wire non-corrosive, heat-proof and humidity-proof material.
Delivery from stock in bulk taped, and strip pack.
Exceptional long-term stabiligy
Standard tolerance:± 1%, ± 2%, ± 5%

Detailed Specifications

Power Rating 70 KNP-1/2W KNP-1W KNP-2W KNP-3W KNP-4W KNP-5W KNP-7W KNP-8W KNP-10W
Series Number KNS-1W KNS-2W KNS-3W KNS-4W KNS-5W KNS-7W KNS-10W - -
Operating Temp. Range -55~ +155
Dielectric Withstanding Voltage(AC) 500V 500V 500V 500V 500V 500V 500V 800V 1000V
Value Range ±5% 0.1Ω-300Ω 0.1Ω-499Ω 0.1Ω-1.5KΩ 0.1Ω-1.5KΩ 0.1Ω-1.5KΩ 0.5Ω-3KΩ 0.5Ω-3KΩ 1Ω-3KΩ 1Ω-3KΩ
Temp. Coefficient (by Type) ±350ppm/℃

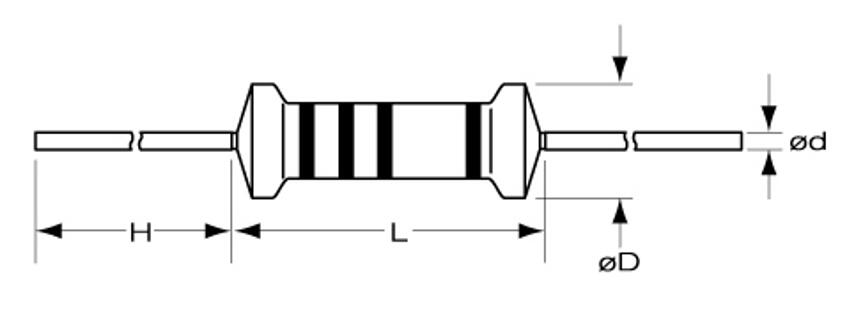

Product Drawing
