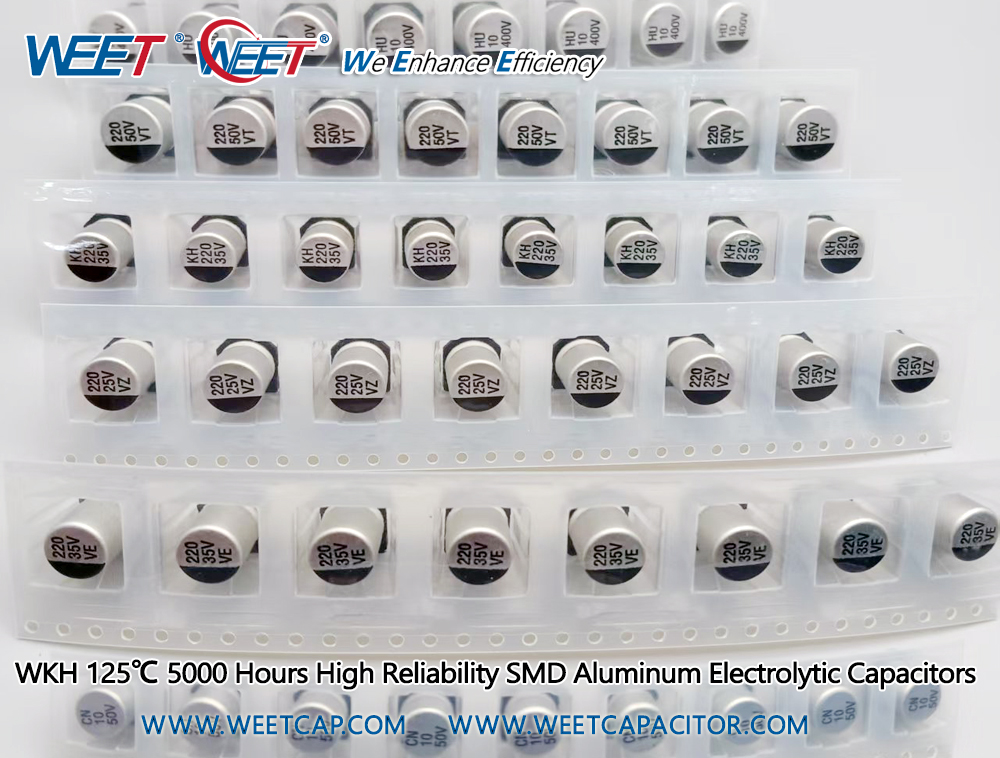

WEET WKH 125℃ 5000 Hours High Reliability SMD Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WKH 125℃ 5000 Hours High Reliability SMD Aluminum Electrolytic Capacitors
High temperature range up to +125
Suitable for automotive equipment
Load life of 1000~5000 hours
Comply with the RoHS directive

Detailed Specifications


Operating Temperature: -55℃~+105℃
Rated Voltage: 10V - 450V.DC
Capacitance Range: 3.3uF - 2200uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Various Dimensions Size mm: 4x5.4, 5x5.4, 6.3x5.4, 6.3x7.7, 8x10.5, 10x10.5, 10x13.5, 12.5x13.5, 12.5x16, 16x16.5, 16x21.5, 18x16.5, 18x18.5

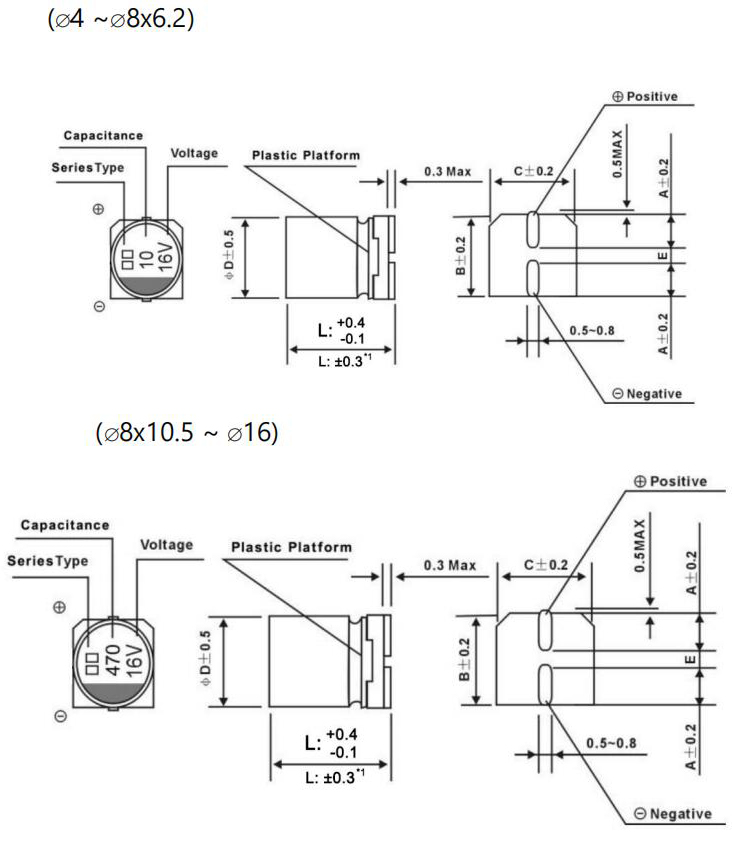

Product Drawing

Main Applications

The products are mainly used in LED display screen, outdoor advertising full-color display screen, PC power supply, audio power amplifier, adapter, charger, security, vehicle DVD, network communication equipment, control board card, set-top box, LED energy-saving lamp rectifier and other fields.
