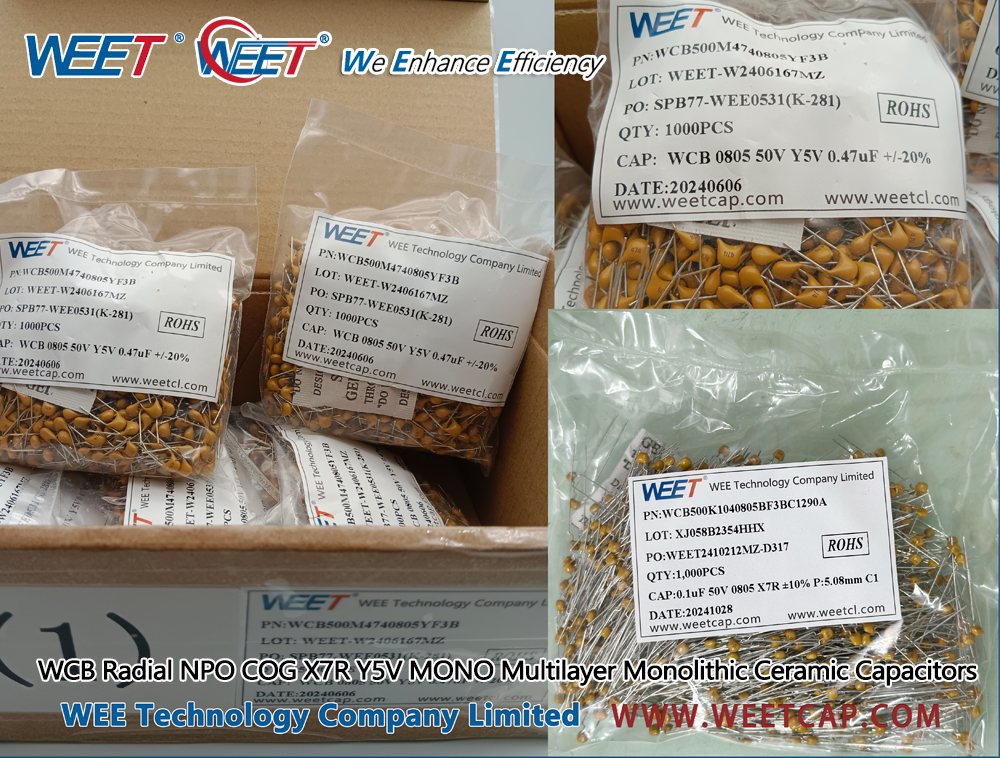

WEET WCB Radial NPO COG X7R Y5V MONO Multilayer Monolithic Ceramic Capacitors

Features

Coating by epoxy resin, creates the excellent humidity resistance and prevents body from damaging during soldering and washing.
Miniature size, wide capacitance, tape and reel packaging available for auto-placement.
Industry standard size and various load spacing available.

Detailed Specifications

Operating Temperature：			NPO (COG) X7R:-55℃~+125℃, Y5V (Z5U) -25℃~+85℃
Rated Voltage：			DC 25V, 50V, 100V
Size Code：			0805 1206 1210 1812 2225 3035
Capacitance Range：			0.5pF - 22µF
Capacitance Tolerance：			±5%, ±10%, ±20%,
Pitch Size：			2.54 mm, 5.08 mm, 7.5 mm

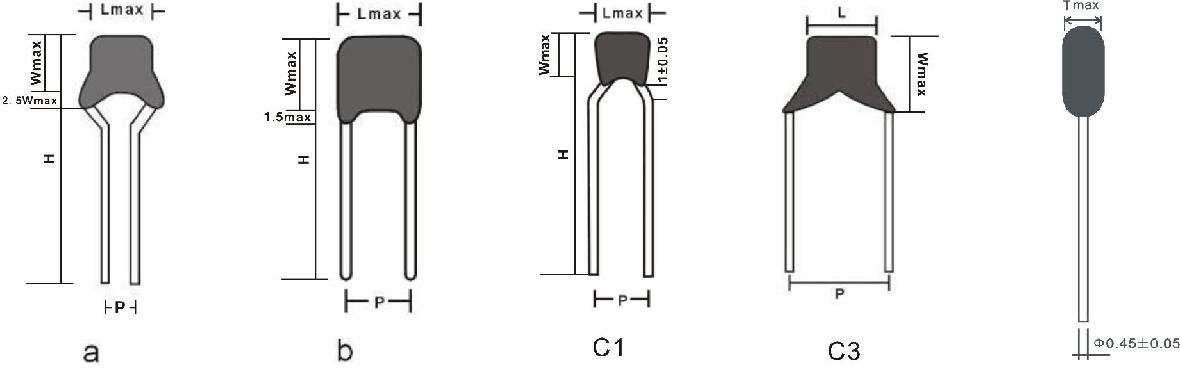

Product Drawing

Main Applications

• Use in circuits requiring stable performance.
• Use as blocking、coupling、By-passing discriminating element.
• Suited for By-passing and coupling application such as store power and memory circuit.

Cross Reference

AVX PN	Size Code	Lead Spacing	WEET PN	WEET Description
SR305C474KAR	1206	0.200" (5.08mm)	WCB500K4741206BF3B	0.47uF 50V 1206 X7R ±10% P:5.08mm B Type H:10mm 0.5mm CP wire Bulk RoHS
SR215C473KAR	0805	0.200" (5.08mm)	WCB500K4730805BF3B	0.047uF 50V 0805 X7R ±10% P:5.08mm C1 Type H:5mm 0.5mm CP wire Bulk RoHS
SR215C104KAR	0805	0.200" (5.08mm)	WCB500K1040805BF3B	0.1uF 50V 0805 X7R ±10% P:5.08mm C1 Type H:5mm 0.5mm CP wire Bulk RoHS
SR215C103KAR	0805	0.200" (5.08mm)	WCB500K1030805BF3B	0.01uF 50V 0805 X7R ±10% P:5.08mm C1 Type H:5mm 0.5mm CP wire Bulk RoHS
SR211E104MARTR1	0805	0.200" (5.08mm)	WCB101M1040805YPF3B	0.1uF 100V 0805 Y5V ±20% P:5.08mm C1 Type H:10mm 0.5mm CP wire Ammo RoHS
SR211C473KAR	0805	0.200" (5.08mm)	WCB101K4730805BF3B	0.047uF 100V 0805 X7R ±10% P:5.08mm C1 Type H:5mm 0.5mm CP wire Bulk RoHS
SR211C104KAR	0805	0.200" (5.08mm)	WCB101K1040805BF3B	0.1uF 100V 0805 X7R ±10% P:5.08mm C1 Type H:5mm 0.5mm CP wire Bulk RoHS
SR205C104KARTR1	0805	0.100" (2.54mm)	WCB500K1040805BPF1B	0.1uF 50V 0805 X7R ±10% P:2.54mm B Type H:10mm 0.5mm CP wire Ammo RoHS
AR215C474K4R	0805	0.200" (5.08mm)	WCB500K4740805BF3B	0.47uF 50V 0805 X7R ±10% P:5.08mm B Type H:10mm 0.5mm CP wire Bulk RoHS
AR215C104K4R	0805	0.200" (5.08mm)	WCB500K1040805BF3B	0.1uF 50V 0805 X7R ±10% P:5.08mm C1 Type H:5mm 0.5mm CP wire Bulk RoHS
Note: 1, For other capacitance, voltage and special lead length, tinned copper wire, please contact with WEET sales engineers, thank you 2, For AEC-Q200 Automotive products, available on request, thank you.
