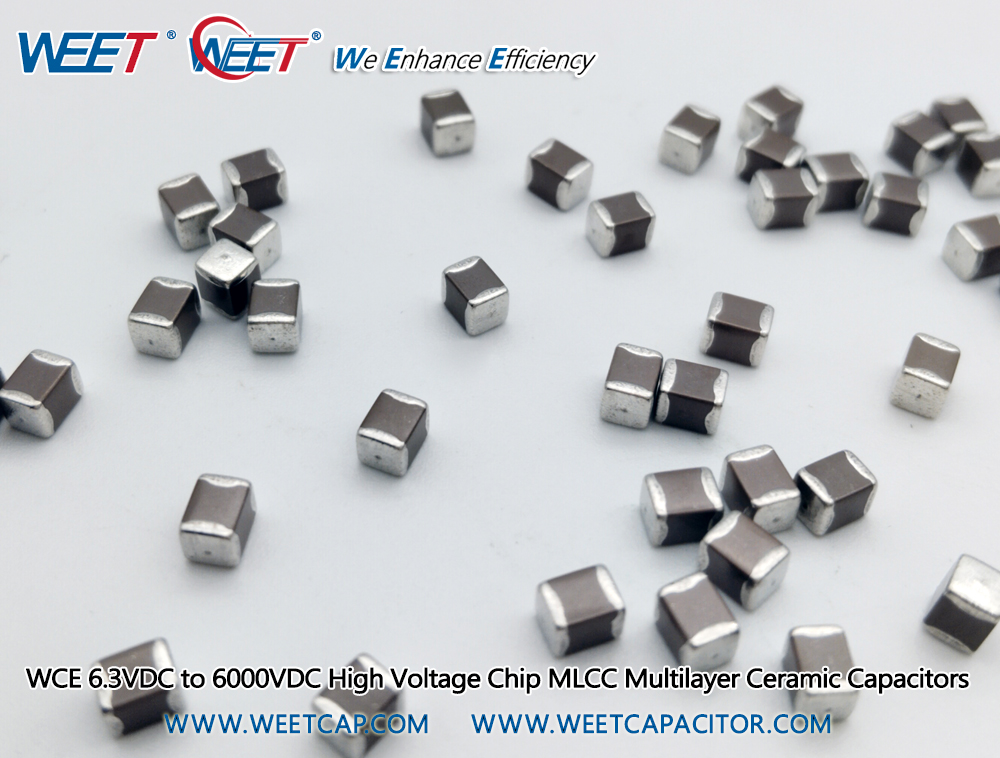

WEET WCE 6.3VDC to 6000VDC High Voltage Chip MLCC Multilayer Ceramic Capacitors

PDF Download

Features

WEET WCE 6.3VDC to 6000VDC High Voltage Chip MLCC Multilayer Ceramic Capacitors
Small size，Excellent Break down voltage, low DF
RoHS compliant .Suit to re-flow soldering, wave soldering, hand soldering

Detailed Specifications

Operating Temperature： NPO (COG) X7R:-55℃~+125℃, Y5V (Z5U) -30℃~+85℃
Rated Voltage： 100 VDC, 500 VDC, 1000 VDC, 2000 VDC, 3000 VDC, 4000 VDC, 5000 VDC
Size Code： Tape and Reel (0402, 0603, 0805, 1206, 1210, 1812, 2220)
Capacitance Range： 0.5pF ~ 0.68uF
Capacitance Tolerance： ±0.1pF , ±0.25pF, ±0.5pF, ±5.0%, ±10%, ±20%, +80%-20%
Dielectric Material Type of Capacitor： NPO, X7R, X5R, Y5V

Product Drawing

Comparison of inch and metric dimensions of conventional chip capacitor
Generally, the chip capacitor refers to MLCC, that is, multilayer ceramic capacitors, also known as chip capacitors or chip capacitors. Conventional chip capacitors are divided into COG (NPO), X7R and Y5V according to the British standard,
Its pin package usually has the following 12 models: 0201，0402，0603，0805，1206，1210，1812，1825，2225， 3012、3035。

Among them, 0201，0402，0603，0805，1206 are chip capacitors with common package sizes, and the capacity range is generally 0.5pf ~ 1uF.
1210，1812，1825，2225，3012 and 3035 are large-size chip capacitors with a capacity range of 1uF ~ 100uF.

See the following table for the comparison of common chip capacitor package sizes between imperial and metric sizes:

WEET-WCE-Drawing

Main Applications

Widely used in Analog & Digital Modems, LAN/WAN Interface, Lighting Ballast Circuits, Voltage Multipliers, DC- DC Converter, Back-lighting Inverters
