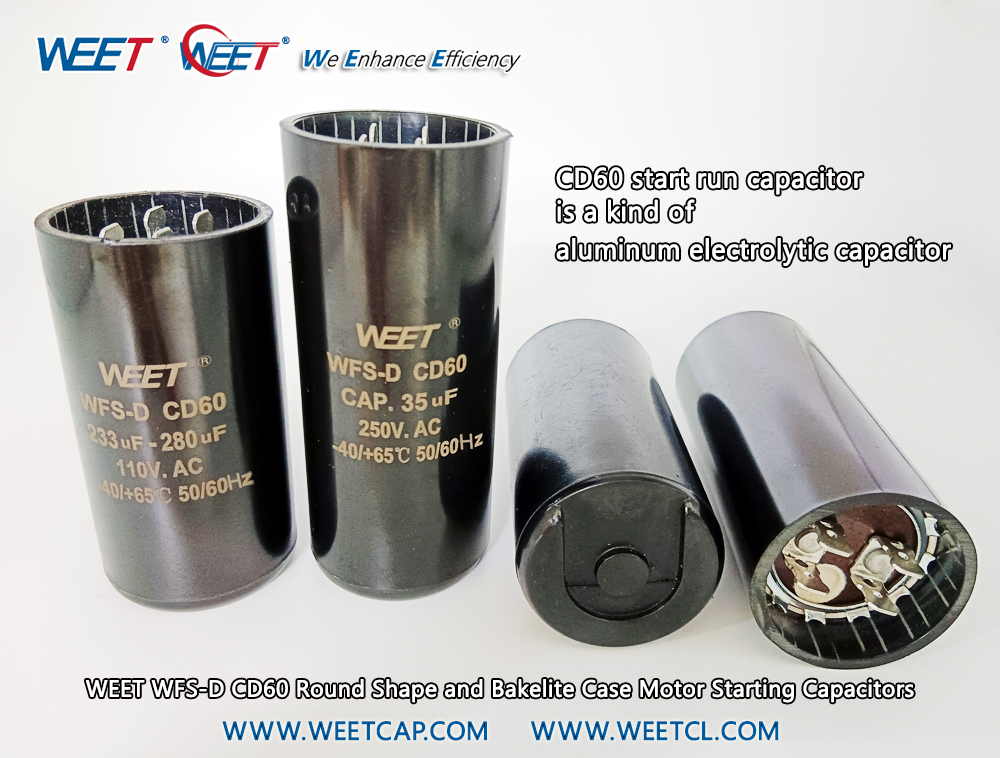

The rated voltage of the CD60 AC motor starting capacitor with bakelite shell in the American style is 250V (AC).
Its power characteristic is low power, the adjustment method is fixed, and the frequency characteristic is low frequency,
The application scope is low voltage, the model is CD60, the allowable deviation is ±5 (%), the lead type is coaxial lead, the brand is WEET, and the shape is cylindrical
Product Structure
The casing is cast and pressed with phenolic resin. The product can be optionally equipped with mounting brackets, and the lead-out structures include 2+2 lugs, wires, and cables.
Product Features
It can enhance motor torque at a lower starting current. With excellent insulation properties, high strength, and resistance to damage; the terminals are well-sealed, robust, leak-proof,
and capable of withstanding significant external forces. It facilitates easy installation, fixation, and wiring.
Scope of Application
50Hz/60Hz single-phase AC motor, suitable for various single-phase motors such as air conditioners and cold storage cabinets.
Durability
Rated voltage greater than or equal to 160V, powered on once per minute for one second each time, totaling 30,000 cycles; rated voltage less than 160V,
Power on once every half minute, with each power-on lasting one second, for a total of 75,000 times.
