WEET WFC X2 Metallized Polypropylene Film Capacitor 310VAC

PDF Download

Features

WEET WFC X2 Metallized Polypropylene Film Capacitor 310VAC
  • Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.
  • Used in across-the-line,interference suppression circuit
  • Class X2 safety capacitors for 275V 305V 310VAC.
  • Provides interference suppression capacitor with CQC, VDE, ENEC and UL approvals.
  • Cut leads, Bulk, Ammo Tape Package,Long leads are available.

Detailed Specifications

Operating Temperature: -40°C~ +110°C
Voltage Rating: 310VAC
Safety Approvals: ENEC, VDE, UL,cUL.CQC
Capacitance Range: 0.0047 ~ 10.0μF
Capacitance Tolerance: std ±10% (K)
Insulation Resistance: CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S , (20℃，100V,1min)
Dissipation Factor: 0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃)
0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃)
1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
Voltage Proof: 4.3UR DC /5s

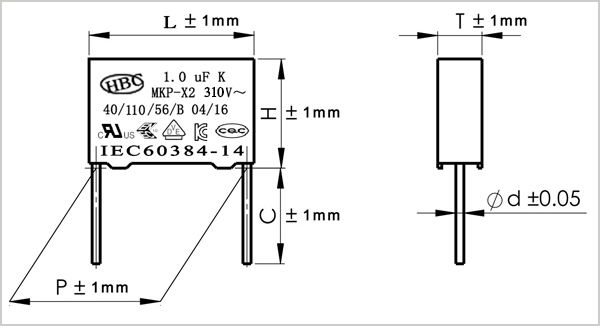

Product Drawing

Main Applications

Used in across-the-line,interference suppression circuit


WEE Technology Kemet (Arcotronics) Epcos Pilkor Evox Rifa
WFC Class X2 R46 B81 130 PCX2 337 PHE 840M
(310VAC) B32921~B32924 PCX2 339 PHE 840E
WEE Technology Vishay Wima Iskra Panasonic
WFC Class X2 MKP 3382 MP3 X2 KNB 153X ECQU
(310VAC) MKP 3392 MKP X2 KNB 156X

Cross Reference

All the information on this page are for reference only. Please consult with WEET Sales Engineers for more details, thank you.

Competitor Brand Competitor Part Number Competitor Description WEET Part Number WEET Description
KEMET F863BC104M310ALW0L X2 0.1UF/310VAC ±20% 18*11*5 P=15 WFCQ3104K150000BR WFC X2 0.1uF 310VAC ±10% 18x12x6mm P: 15mm Bulk RoHS
KEMET F863FL225K310Z X2 2.2UF/310VAC ±10% 32*25*13 P=27.5 WFCQ3225K275000BR WFC X2 2.2uF 310VAC ±10% 31x25x14mm P: 27.5mm Bulk RoHS
KEMET F863RT106K310Z X2 10UF/310VAC ±10% 41.5*45*30 P=37.5 WFCQ3106K375000BR WFC X2 10uF 310VAC ±10% 41x43x28mm P: 37.5mm Bulk RoHS
KEMET 413R33304000M X2 0.33UF/300VAC ±20% 32*28*14 P=27.5 WFCQ3334K275000BR WFC X2 0.33uF 310VAC ±10% 31.5x19.5x10.8mm P: 27.5mm Bulk RoHS
KEMET 413R36804000M X2 0.68UF/300VAC ±20% 32*33*18 P=27.5 WFCQ3684K275000BR01 WFC X2 0.68uF 310VAC ±10% 31x25x14mm P: 27.5mm Bulk RoHS
KEMET F43KI2470ZA01K X2 0.047UF/275VAC ±10% 18*14.5*7.5 P=15 WFCQ3473K150000BR WFC X2 0.047uF 310VAC ±10% 18x11x5mm P: 15mm Bulk RoHS
CDE / Illinois Capacitor MPX823K305E X2 0.082UF/305VAC ±10% 18*12*6 P=15 WFCQ3823K150000BR WFC X2 0.082uF 310VAC ±10% 18x11x5mm P: 15mm Bulk RoHS
CDE / Illinois Capacitor MPX104K305D X2 0.1UF/305VAC ±10% 13*12*6 P=10 WFCQ3104K100000BR WFC X2 0.1uF 310VAC ±10% 13x12x6mm P: 10mm Bulk RoHS
CDE / Illinois Capacitor MPX103K305D X2 0.01UF/305VAC ±10% 13*11*5 P=10 WFCQ3103K100000BR WFC X2 0.01uF 310VAC ±10% 13x11x5mm P:10mm Bulk RoHS
CDE / Illinois Capacitor MPX224K305E X2 0.22UF/305VAC ±10% 18*14*8 P=15 WFCQ3224K150000BR03 WFC X2 0.22uF 310VAC ±10% 18x14.5x8.5mm P: 15mm Bulk RoHS
CDE / Illinois Capacitor MPX225K305H X2 2.2UF/305VAC ±10% 32*28*14 P=27.5 WFCQ3225K275000BR WFC X2 2.2uF 310VAC ±10% 31x25x14mm P: 27.5mm Bulk RoHS
KEMET F863FU335K310ALW0L X2 3.3UF/310VAC ±10% 32*33*18 P=27.5 WFCQ3335K275000BR WFC X2 3.3uF 310VAC ±10% 32x28x18mm P: 27.5mm Bulk RoHS
KEMET F863BN334K310ALW01L X2 0.33UF/310VAC ±10% 18*14.5*8.5 P=15 WFCQ3334K150000BR WFC X2 0.33uF 310VAC ±10% 18x14.5x8.5mm P: 15mm Bulk RoHS
KEMET F862DU105K310Z X2 1UF/310VAC ±10% 26*26*13 P=22.5 WFCQ3105K225000BR WFC X2 1uF 310VAC ±10% 26x21.5x12mm P: 22.5mm Bulk RoHS
KEMET F863B2474K310ALW0L X2 0.47UF/310VAC ±10% 18*19*11 P=15 WFCQ3474K150000BR04 WFC X2 0.47uF 310VAC ±10% 18x19x11mm P: 15mm Bulk RoHS
KEMET F863DN684K310ALW0L X2 0.68UF/310VAC ±10% 26.5*18.5*10 P=22.5 WFCQ3684K225000BR WFC X2 0.68uF 310VAC ±10% 26.5x19x10mm P: 22.5mm Bulk RoHS
KEMET F863DV155K310Z X2 1.5UF/310VAC ±10% 26.5*22*13 P=22.5 WFCQ3155K225000BR WFC X2 1.5uF 310VAC ±10% 26x21.5x12mm P: 22.5mm Bulk RoHS
KEMET F863RL475K310Z X2 4.7UF/310VAC ±10% 41.5*32*19 P=37.5 WFCQ3475K375000BR WFC X2 4.7uF 310VAC ±10% 41x33.5x18.5mm P: 37.5mm Bulk RoHS
KEMET F863RR685K310ALW0L X2 6.8UF/310VAC ±10% 41.5*44*24 P=37.5 WFCQ3685K375000BR WFC X2 6.8uF 310VAC ±10% 41x37x22mm P: 37.5mm Bulk RoHS
KEMET F863B2564K310ALW0L X2 0.56UF/310VAC ±10% 18*19*11 P=15 WFCQ3564K150000BR01 WFC X2 0.56uF 310VAC ±10% 18x19x11mm P: 15mm Bulk RoHS
KEMET F863BF154K310ALW0L X2 0.15UF/310VAC ±10% 18*12*6 P=15 WFCQ3154K150000BR WFC X2 0.15uF 310VAC ±10% 18x12x6mm P: 15mm Bulk RoHS
