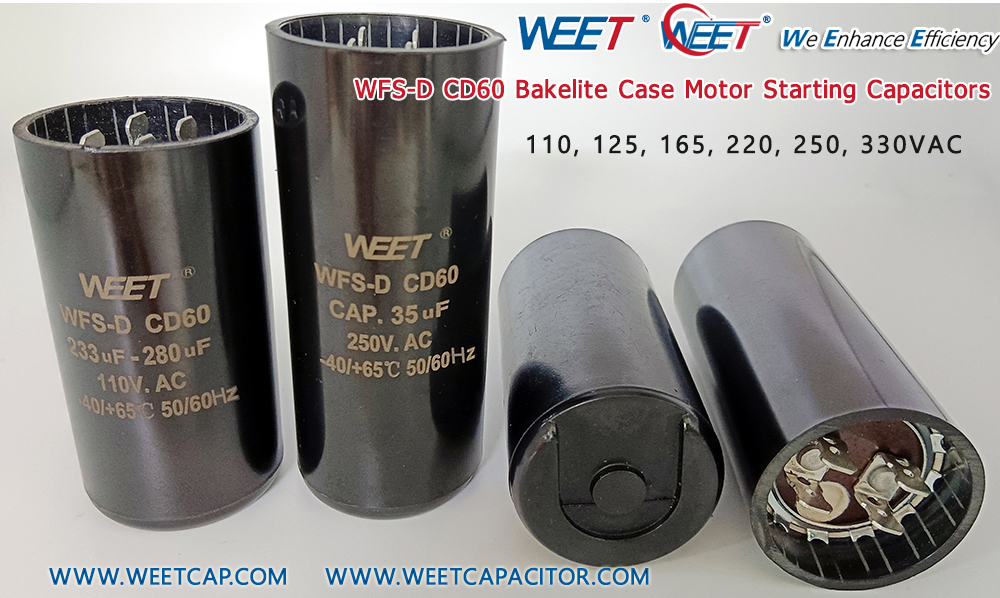

WEET WFS-D CD60 Round Shape and Bakelite Case Motor Starting Capacitors

Features

WEET WFS-D are Bakelite Case Type Non-polarized aluminum electrolytic construction
These capacitors are used in starting fractional horsepower,
Single-phase electric motors, as well as in gear motor applications.
Quick connect terminals for easy installation.
Compact Bakelite start capacitor engineered for reliable motor starting in HVAC applications.
Such as air conditioning, refrigerator compressor, air condition etc

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature	-40℃ ~ +65℃
Voltage Range	110, 125, 165, 220, 250, 330VAC
Capacitance Range	25uF ~ 1536uF（Single Capacitance on Request）
Capacitance Tolerance	-10%~+20%（For Single Capacitance）
Operating Frequency	50/60Hz
Withstand Voltage Between Terminals	1.2 times working voltage, no break down within 2s
Withstand Voltage Between Terminal And Case	2000VAC, no break down with 60s

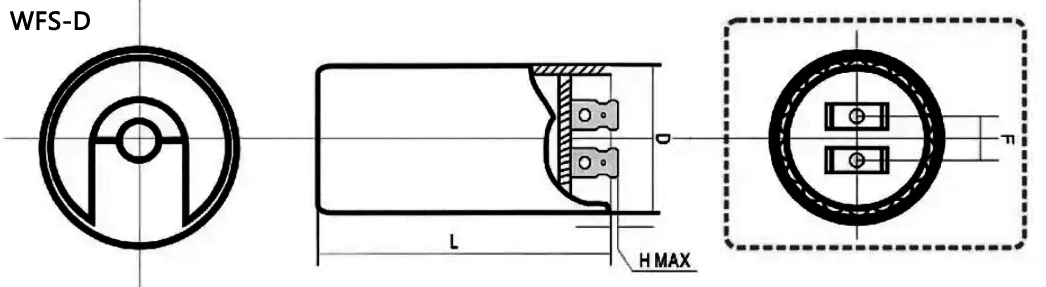

Product Drawing

Main Applications

CD60 start run capacitor is a kind of aluminum electrolytic capacitor, which is mainly used for starting single-phase motor, especially for equipment such as air compressor, water pump start capacitor, and soybean milk machine. It has a small size, large capacity, and stability, and can provide the required starting current and torque when starting an AC motor. CD60 starting capacitor also has the ability to accommodate charges and can play a role in isolating direct current, coupling, bypassing, filtering, etc. in circuits.
The Start Capacitor (CD60) Bakelite Case Type is a dedicated Ac Motor Start Capacitor designed for single-phase AC motors. Widely applied in air conditioners and refrigerators, this capacitor serves as a critical starting component, ensuring smooth and reliable activation of electrical appliances. With its bakelite case design and precise performance parameters, it meets the practical needs of household and small industrial motor systems.
