WEET WTP-A Inverter Speed Regulator Potentiometer With Digital Dial

PDF Download

Features

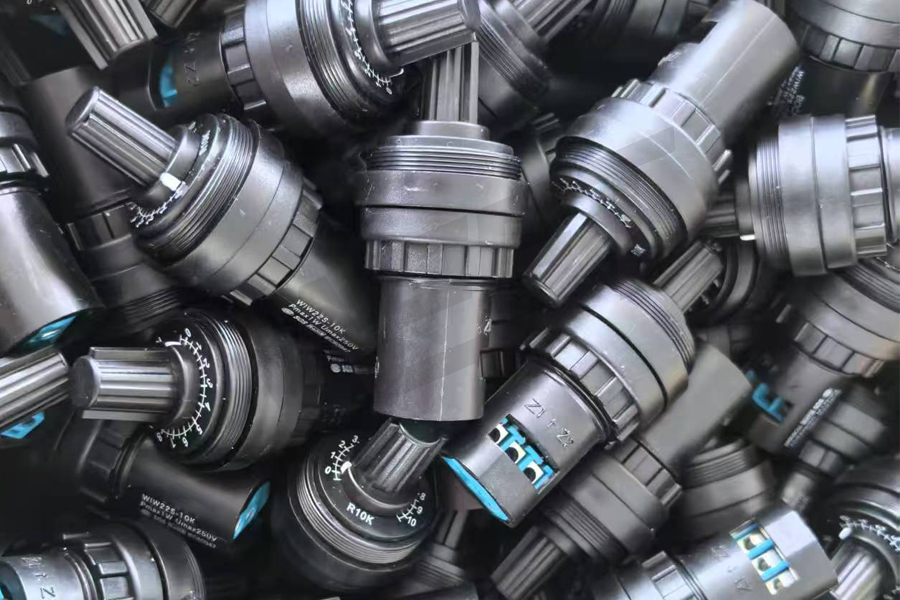

WEET WTP-A  Inverter Speed Regulator Potentiometer With Digital Dial
Rated Power: 1W
Single-turn
Precision Adjustable
Reliable Performance

Small Size,High Precision


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Electrical Characteristics
Standard Resistance Range 50Ω-2MΩ
Resistance Tolerance ±10%
End Resistance ≤5% R or 10Ω
Contact Resistance Variation ≤5%R or
Insulation Resistance 600 Vdc.
Withstanding Voltage Ri ≥1GΩ100Vac
Adjustment Angle >70% Of the Total Mechanical Travel

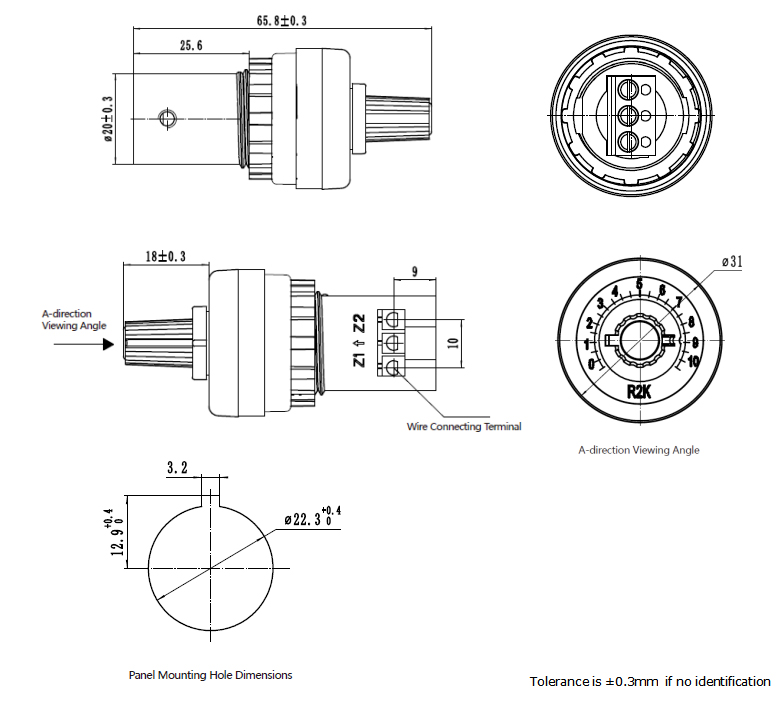

Product Drawing


Main Applications

The most core and common application of the WTP-A potentiometer is as a speed adjustment potentiometer for frequency converters.
In addition, it has widespread applications in various industrial fields

Industrial Motors and Drives,Automated Machinery, HVAC system, Pumps and compressors, Electric Tools and Household Appliances, Electric vehicles, Renewable energy systems, test and measurement instruments.
