WEET WTP 3386 0.5W 9mm Square Trimming Potentiometer

PDF Download

Features

WEET WTP 3386 0.5W 9mm Square Trimming Potentiometer
Single Turn/ Cermet/ Industrial/ Sealed.
Many Terminal Styles.

Detailed Specifications

Standard Resistance Range 10Ω - 5MΩ
Resistance Tolerance ±10% ; ±20% for 10, 20 and 2M ohm
Absolute Minimum Resistance ≤±1%R or 10Ω
Contact Resistance Variation CRV≤±3%R or 5Ω (whichever is larger)
Insulation Resistance R1≥1GΩ(500Vdc)
Withstand Voltage 640VAC
Effective Travel 260o

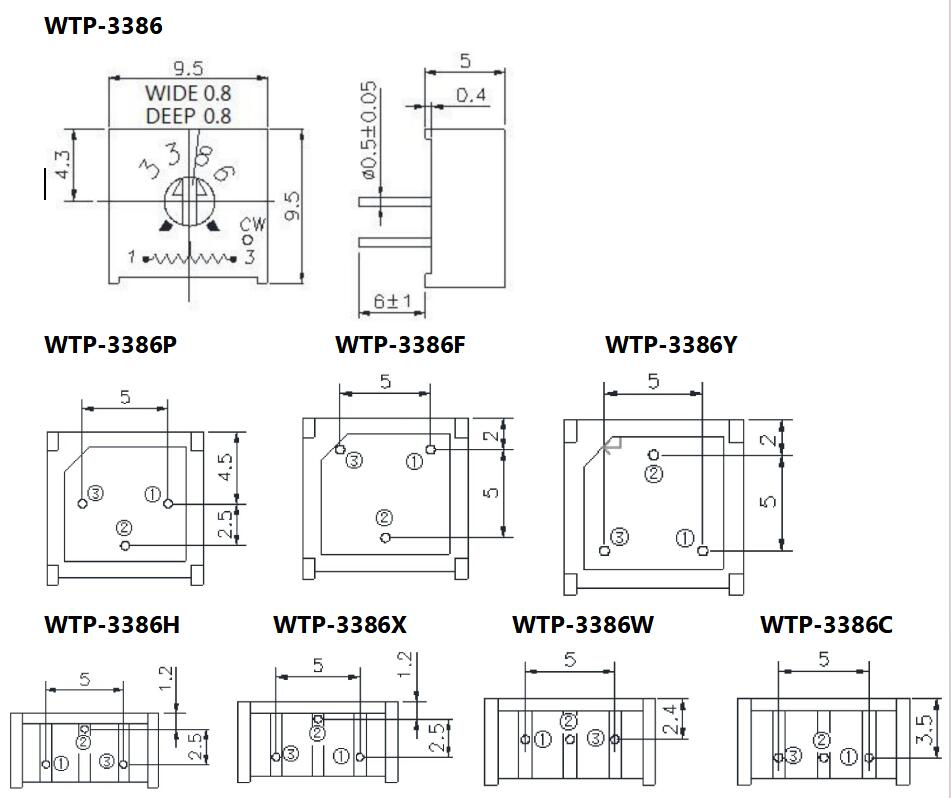

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations

Cross Reference

Cross BOURNS 3386, B.I. (Beckman, TT Electronics) 72, Vishay 63
