WEET WML Small Size Compact MKT Metallized Polyester Film Capacitor Axial and Oval

PDF Download

Features

WEET WML Small Size Compact MKT Metallized Polyester Film Capacitor Axial and Oval
WML is constructed with metallized polyester film as medium and electricode, wrapped and sealed with flame-retardant plastic and epoxy resin. With high reliability, high temperature-resistance, small volume, large capacity and good self-healing property.

We have been able to make them smaller in size and with better sonic properties compared to electrolytic capacitors.

Due to their flat shape, they can be easily stacked when it is necessary to couple multiple capacitors in parallel to reach a higher capacity value for a certain crossover position.

Detailed Specifications

Operating Temperature -40℃~ +105℃
Rated Voltage 160V.DC
Withstand Voltage 1.6UR 2s (1.5UR 5s) Capacitance Range
Capacitance Range 1μF ~ 100μF
Capacitance Tolerance ±5%
Insulation Resistance C≤0.33μF,VR≤100V(10V)≥7500MΩ
VR>100V ≥15000 MΩ
C>0.33μF VR≤100V(10V)≥2500S VR>100V ≥5000S

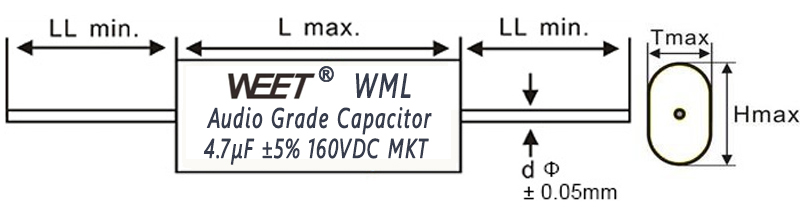

Product Drawing


Main Applications

The Compact MKT capacitors are made with the highest quality metalized polyester film possible.
We have been able to make them smaller in size and with better sonic properties compared to “plain/smooth foil” electrolytic capacitors.
With a voltage rating of 160 volts DC, they are also more versatile to use than electrolytic capacitors, usually only rated at either 63 volts DC or 100 volts DC


Cross Reference

Cross to Jantzen-audio Compact MKT 160V
