WEET WMP CBB19H 3000V Polypropylene Film and Dual Metallized Electrodes Capacitors

Features

Snubber Capacitor for IGBT(Axial-type)
Low loss polypropylene dielectric
Metallized polypropylene film capacitor MKP - Switching - High current
Quick transient design
High dV/dt, High pulse current, Low inductance, Self healing
Low ESR characteristics, excellent high frequency and high voltage capabilities.

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Passive flammability	IEC61070GB 17702.1
Operating temperature	-40℃～+85℃
Capacitance range	0.01uF~1.0uF(Other values on request)
Capacitance tolerance	±5%、±10% 1KHz
Rated voltage	630V.DC ～ 3000V.DC
Withstand Strike Current ability	dv/dt>600v/us
Withstand voltage	1.6Un(60S)
Dissipation factor	≤0.0008 (at 10kHz)
Insulate the electric resistance	IR ≥100 000MΩ,CN≤0.33uF
（20℃,100VDC,1min）	IR ≥30000s CN ＞0.33uF
Leads Diameter	Tinned Pure Copper Wire

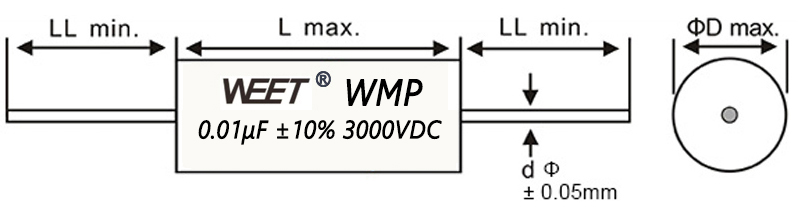

Product Drawing

Main Applications

Main applications: Switching capacitor for industrial and motor speed controls, high frequency electronic ballasts, switching mode power supplies, resonant circuits, induction heaters, high-end audio applications

For Audio Application: It is a well known secret that placing these in parallel with other capacitors in your crossover will improve its sonic abilities.A cheap and very effective way to squeeze a bit more from your system.

These capacitors are used in high voltage and high current applications such as :Snubber networks,Energy conversion and control in power electronics, Noise suppressors in switching circuits

850Vdc(450Vac), Dual Metallized Electrodes Capacitors, Internal series connection, MKP - Switching - High current, Cross Reference Table For Review Only
CR (uF)	Dmax	Lmax	dV/dt (V/us)	Ipeak(A)	ESR @100kHz (mΩ)	I(max)100KHz 70℃	Tol.%	ICEL:D	ICEL:L	ICEL Part Number
0.1	10.4	29	1,200	120	13	3.6	10	9.5	27	PHC1853100KG
0.15	12	29	1,200	180	10	4.5	10	11	27	PHC1853150KG
0.22	13.9	29	1,200	264	7.5	5.8	10	13	27	PHC1853220KG
0.33	16.1	29	1,200	396	6	7.5	10	15.5	27	PHC1853330KG
0.15	10.9	34	900	135	10.5	4.5	10	10	32	PHC1853150KJ
0.22	12.5	34	900	198	8	5	10	11.5	32	PHC1853220KJ
0.33	14.6	34	900	297	6.5	6.3	10	14	32	PHC1853330KJ
0.47	16.9	34	900	423	5.5	7.8	10	16.5	32	PHC1853470KJ
0.68	19.8	34	900	612	4.5	9.9	10	19.5	32	PHC1853680KJ
1	23.4	34	900	900	4	12.9	10	24	32	PHC1854100KJ
0.68	17	44	600	408	5.5	9.5	10	16	44	PHC1853680KN
1	20	44	600	600	4.5	11.5	10	19.5	44	PHC1854100KN
1.5	24	44	600	900	4	14	10	23.5	44	PHC1854150KN
2	27.3	44	600	1,200	4	14	10	27	44	PHC1854200KN
2.2	28.5	44	600	1,320	4	14	10	28	44	PHC1854220KN
2.5	30.3	44	600	1,500	4	14	10	30	44	PHC1854250KN
3	32.9	44	600	1,800	4	14	10	32.5	44	PHC1854300KN
2.2	25.3	54	460	1,012	4.5	14	10	24.5	53	PHC1854220KR
2.5	26.8	54	460	1,150	4	14	10	26	53	PHC1854250KR
3	29.2	54	460	1,380	4	14	10	28.5	53	PHC1854300KR
3.3	30.5	54	460	1,518	4	14	10	30	53	PHC1854330KR
4	33.3	54	460	1,840	4	14	10	33	53	PHC1854400KR
4.7	35.9	54	460	2,162	4	14	10	35	53	PHC1854470KR
5	37	54	460	2,300	4	14	10	36	53	PHC1854500KR
2.2	24	58	375	825	4.3	14	10	23	57	PHC1854220KS
2.5	25.4	58	375	938	4	14	10	24.5	57	PHC1854250KS
3	27.6	58	375	1,125	4	14	10	27	57	PHC1854300KS
3.3	28.8	58	375	1,238	4	14	10	28	57	PHC1854330KS
4	31.5	58	375	1,500	4	14	10	31	57	PHC1854400KS
4.7	34	58	375	1,763	4	14	10	33.5	57	PHC1854470KS
5	35	58	375	1,875	4	14	10	34.5	57	PHC1854500KS
6.8	40.4	58	375	2,550	4	14	10	39.5	57	PHC1854680KS
