WEET WTP 3269 0.25W 6mm Square SMD Trimming Potentiometer

PDF Download

Features

WEET WTP 3269 0.25W 6mm Square SMD Trimming Potentiometer
Square SMD Trimming Potentiometer
Stable, infinite resolution cermet element
Vertical and horizontal adjust styles
Suitable for wave soldering and manual soldering only.

Detailed Specifications

Standard Resistance 10Ω - 5MΩ
Resistance Tolerance ±10% (100Ω ~ 1M) ; ±20% (R<100Ω, >1M)
Terminal Resistance ≤±1%R or 10Ω, (whichever is larger)
Contact Resistance Variation (CRV)≤ ±3%R or 5Ω (whichever is larger)
Insulation Resistance ≥1GΩ(500V DC)
Withstand Voltage 500VAC
Effective Travel 10 ± 2 turns

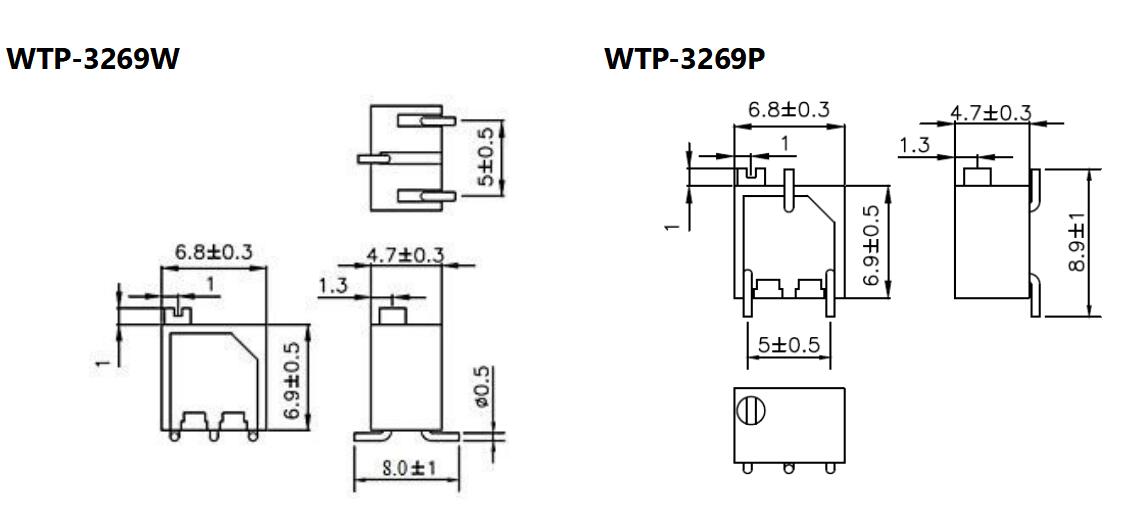

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations
